Top 10 Features of our New MK8 Flammable Gas Sensor
Fixed flammable gas sensors play a vital role in industry; keeping personnel safe and protecting vital assets. And when searching for a flammable gas sensor, it can be overwhelming with the number of choices available on the market. This blog post gives you a run down of the top 10 features of our latest flammable gas sensor, the MK8 pellistor, helping you in choosing the best solution for your team and business. Read on below to find out more.[/cws_sc_text][cws_sc_text]
1. Extreme Stability
At IGD, we have designed our latest flammable gas sensor to ensure extreme stability over its lifetime. Flammable gas sensors can be prone to drifting as a sensor ages, over exposure to flammable gases and vapours and contaminants. Over time, these factors can affect a poorly designed detector arrangement, causing it to drift into a false negative or positive reading. IGD have managed to mitigate this with the MK8 flammable gas sensor, resulting in typically less than 2% LEL drift per year of operation.[/cws_sc_text][cws_sc_text]
2. Most Poison Resistant Pellistor Gas Detector on the Market

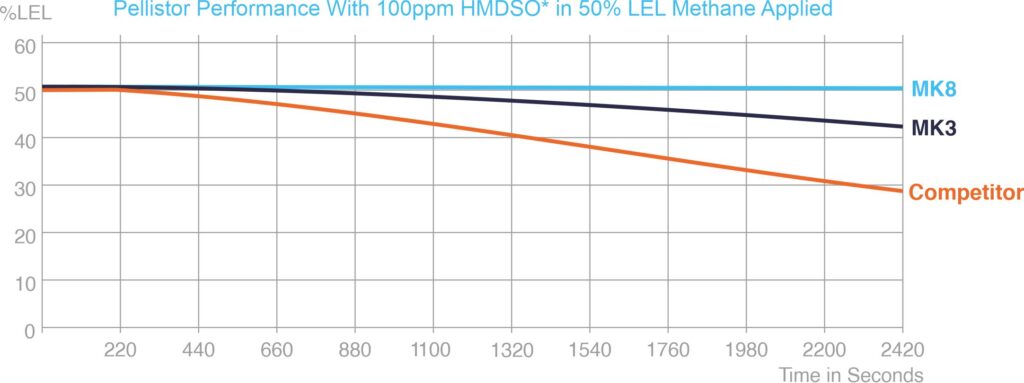

Pellistors can become affected by poisons or inhibitors, such as silicone and lead based compounds. This can lead to the performance of Pellistors dropping significantly through their life, becoming inaccurate and needing a replacement. IGD’s best in class MK3 pellistor has led the way for poison resistance since the 1980’s significantly out performing all others. Our MK8 has managed to outperform even the MK3 flammable gas sensor under test conditions, offering market leading poison resistance over a long period of time. Typically, Industry standard tests only apply 10ppm poisoning agent for 40 minutes. IGD’s standard test requires 100ppm for 40 minutes to simulate real world conditions, 10x what the industry standard asks for. Our MK8 Pellistor continued to accurately respond to 50%LEL flammable gas even after 40 minutes exposure to the poisoning agent. Check out the graph below to see how the MK8 fared against the MK3 and our closest competitors.
[/cws_sc_text][cws_sc_text]
3. Responds to Any Flammable Gas

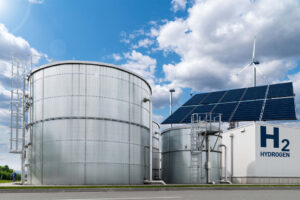

Our MK8 flammable gas sensor is able to respond to any flammable gas with its Pellistor technology and can be calibrated for your specific gas requirements. For example, if you require hydrogen detection for your battery room, the MK8 flammable gas sensor can be calibrated specifically for this. Responding accurately to the chosen gas. This gives the MK8 huge flexibility, as it can perform reliably in pretty much any flammable gas application.
These gases include:
**Please see the MK8 Pellistor datasheet and manual for relative response factors.[/cws_sc_text][cws_sc_text]
4. Long Life, Low-Cost Ownership
The MK8 can operate for up to 5 years, massively reducing costs due to the infrequency of replacements. Additionally, our MK8 flammable gas sensor is plug replaceable, meaning the stainless-steel housing can be retained when your sensor is end of life. Not only is this better for the environment, but this also provides clients a much lower cost of ownership. With the MK8 we only replace what’s needed.[/cws_sc_text][cws_sc_text]
5. Available in Wide Range of IGD Fixed Gas Detector Models
The MK8 flammable gas sensor is approved for ATEX zones 1 and 2 (explosive environments) and zone 21 and 22 (dust environments). If your application requires sampling, safe area or ATEX flammable gas detection, IGD can supply you with a detectably better solution. The MK8 can easily be implemented into the following IGD products:
- TOC-750 Safe Area Addressable Gas Detector

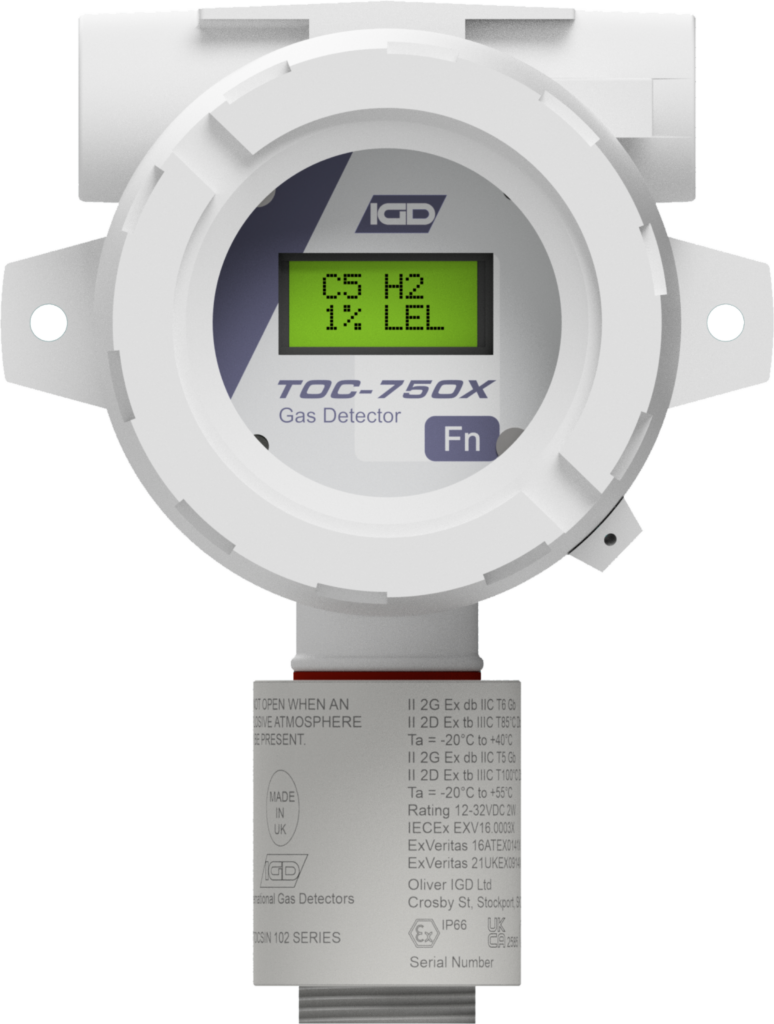

- TOC-750X & XD ATEX/IECEx Detector
- TOC-750S Aspirated (Sampling) Detector
- TOC-903-X5 Dual Gas Detector Transmitter
Thus, the MK8 can be fitted into a wide range of industries and applications.
[/cws_sc_text][cws_sc_text]
6. Maximum Resistance to Shock and Vibration
IGD Flammable gas sensors are designed to meet or exceed the requirements of IEC/EN 60079-29-1 standard, ensuring that sensors will perform effectively a wide range of environments. IGD’S MK8 meets and exceeds the requirements of IEC/EN 60079-29-1, offering resistance to shock and vibration. Therefore, with the MK8 you can be certain that your flammable gas sensor is keeping your team safe effectively in the most demanding environments.[/cws_sc_text][cws_sc_text]
7. Unaffected by Humidity and Operates Over a Wide Temperature Range
One common drawback with some flammable gas sensors is the inability to operate in extreme temperatures or humidity. This is very inconvenient for applications where the sensor is subject to extremes of temperature. IGD have the solution in the MK8 flammable gas sensor, with the ability to operate in extreme environments and be largely unaffected by temperature and humidity.
[/cws_sc_text][cws_sc_text]
8. Only Responds to Flammable Gases
With gas sensors, there is sometimes the possibility of cross interreference due to the similar chemical make of some gases. But with the MK8 flammable gas sensors, unique pellistor technology, it will only respond to flammable gases. Thus, if there is an area with flammable and toxic gas hazards, your flammable gas sensor will only react to the flammable hazard. Providing accurate and reliable flammable gas detection continuously.
[/cws_sc_text][cws_sc_text]
9. Available on our 2-Wire Addressable Technology or on Analogue
The MK8 is available to all of our clients on our unique 2-Wire Addressable technology or on our classic 4-20mA system.
Our leading addressable technology provides clients with a 70% cost saving upon installation whilst increasing operational efficiency and security by 80%. Providing a massively cost effective and reliable system with any IGD 750 series model.
However, if you have an older 4-20mA system, there is no need to worry! IGD can provide the MK8 flammable gas sensor in our TOC-903-X5 detector head. Giving all clients the opportunity to add the most poison resistant flammable gas sensor on the market to their IGD system.[/cws_sc_text][cws_sc_text]
10. Support & Service from the Experts in Flammable Gas Detection
Not only are the team at IGD available to be contacted 5 days a week to answer any questions or queries about flammable gas sensors, but we can also provide full servicing and support via the IGD aftercare team.
It is imperative that your gas detection system operates to the satisfaction of the manufacturer and your team. Thus, the IGD aftercare team can provide this, being the UK approved experts in 2-Wire addressable technology and IGD gas detection instruments.
IGD are the experts in flammable gas detection technology, our history dates back to our founding in 1917; where we created the world’s first electronic flammable gas sensor. Now in 2023 our 100+ years in flammable gas detection knowledge, design and expertise is combined in our MK8 Pellistor.
Contact One of our Experts Today
These are just a few of the best-in-class features of the MK8 flammable gas sensor. Contact IGD today to find out more or check out our datasheet in the downloads page for more technical information.[/cws_sc_text][/vc_column][/vc_row]
